CATALOG
Parts List
Part Number
Description
Drawing
A1257T0P-2
Crimp Terminal
PDF
A1257H00-NP
Simgle Row Housing
PDF
A1257WV0-S-NP
180° Wafer SMT-Type
PDF
A1257WR0-S-NP
90° Wafer SMT-Type
PDF

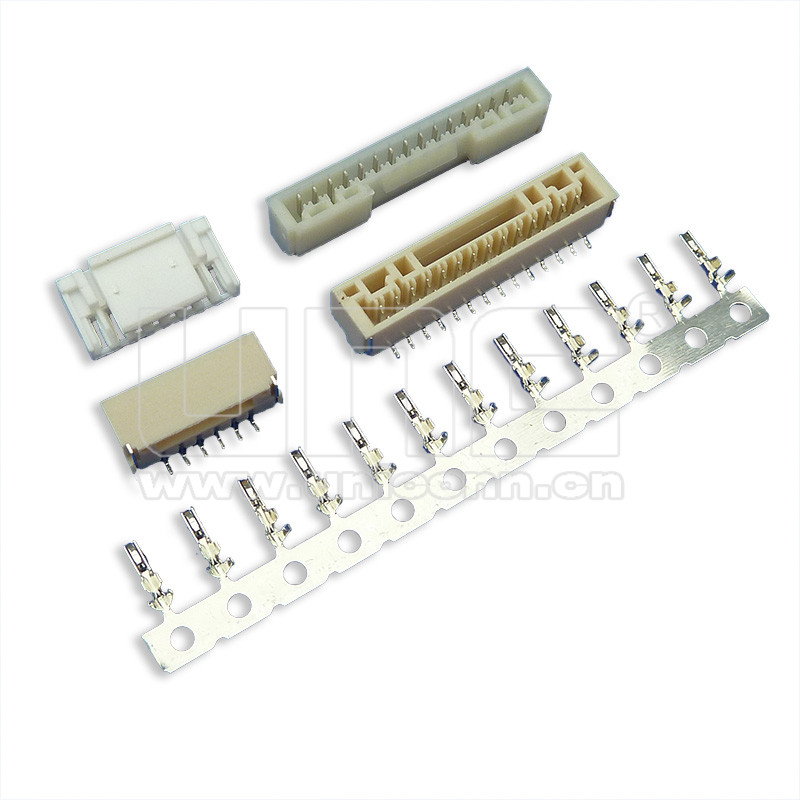

A1257
Current Rating: 1A AC, DC
Voltage Rating: 50V AC
Contact Resistance: 30MΩ Max.
Insulation Resistance: 100MΩ Min.
Withstanding Voltage: 500V AC/minute
SPECIFICATION SHEET
