CATALOG
Parts List
Part Number
Description
Drawing
C2509T0P-2
Crimp Terminal(Male)
PDF
C2509H00-2P
Crimp Terminal(Female)
PDF
C2510T0P-2
2.0mm Pitch Housing(Female)
PDF
C2510H00-2P
2.0mm Pitch Housing(Male)
PDF

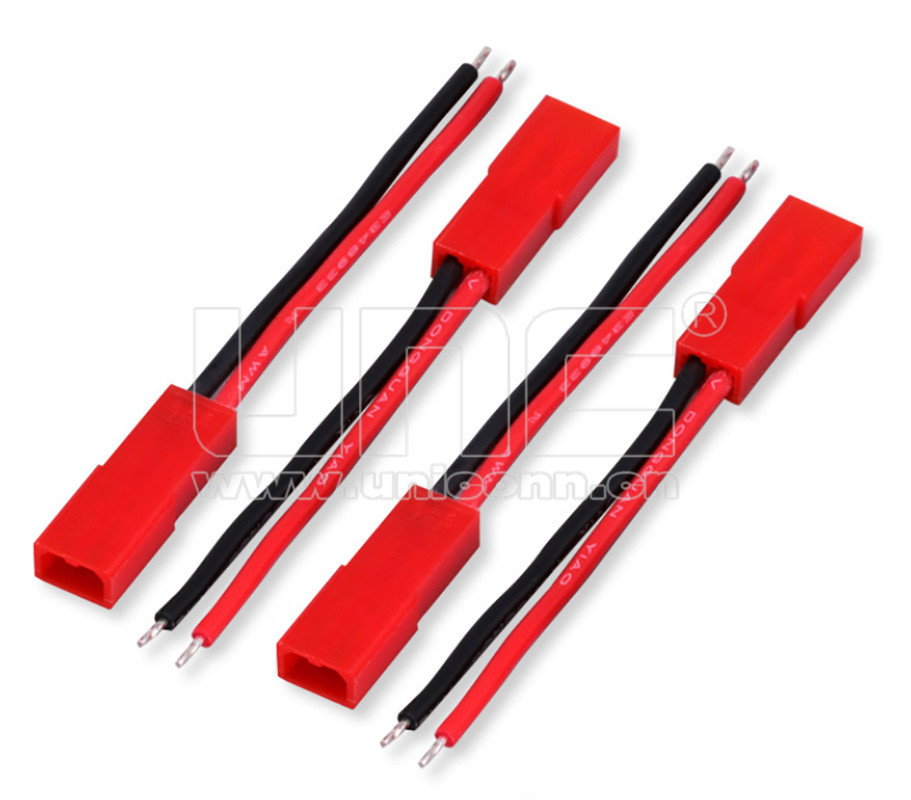

C2509
Current Rating: 3A AC, DC
Voltage Rating: 250V AC
Contact Resistance: 20MΩ Max.
Insulation Resistance: 500MΩ Min.
Withstanding Voltage: 1,500V AC/minute
SPECIFICATION SHEET
